Routes
The Routes page shows detailed information about the routes on a specific lane:
Different routes on the lane.
Locations of excursions on this lane and type of location.
List of routes with details on stops along the way.
Note
A route is a detailed path that a shipment takes from origin to destination location. There can be multiple routes in a lane.
Note
A point of interest (POI) is a a customer defined location, airport or harbor that shipments have traveled to and/or from.
Selected lane - origin and destination locations. The page shows routes on this lane.
Tip
To select another lane, you can do one of the following:
At the bottom of the page, in the Search for specific lane list, click the lane you want to select.
In the Home tab, in the Lanes table, click the lane, and then click Drill through the selected lane.
Tip
To clear the filter, click the eraser
.
You can filter the data in the page by the following parameters:
Item | Description |
|---|---|
Shipments delivered | Date range shipment was delivered. Type a date, or click
|
Only include routes with at least this number of shipments | You can filter the results on this tab to only show routes with at least this number of shipments:
|

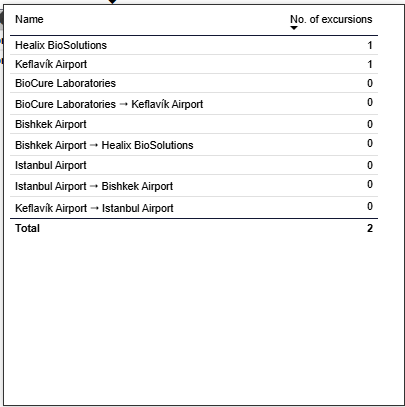

List of POIs on this lane where excursions occur, ordered by highest number of excursion. Includes legs between POIs: En route.
Tip
You can click any column header to sort the contents of the table by the contents of that column. An arrow indicates the column the table is sorted by: An arrow pointing up indicates ascending order, and an arrow pointing down indicates descending order. Click the column header to toggle between the two.
Item | Description |
|---|---|
Where excursions happen | Location or leg between POIs where excursions occur. |
Type | Type of location for this POI: |
Shipments with excursions at POI | Number of shipments that have an excursion at this POI or leg between POIs. |
KPIs for this lane in the period selected in the filter above.
Item | Description |
|---|---|
Shipments | Number of shipments on this lane delivered in the selected period that have a shipping duration of below 150 days. |
Shipments with excursions | Number of shipments with excursions requiring manual inspection on this lane. |
Excursion % | Ratio of excursions requiring manual inspection on this lane. |
POIs with excursions | Number of POIs with excursions on the selected lane. |
Trend for number of shipments with excursions on this lane in the period selected in the filter above.
Tip
You can hover over images/graphs to see details in a pop-up.
List of routes on the selected lane, with details about each route.
You can filter the data in the page by the following parameters:
Item | Description |
|---|---|
Temperature range | Temperature range. Configured temperature range for selected shipments. Click one or more from the list. |
Transportation mode | Mode of transportation of the shipment. Click one or more from the list: |
Business unit | Business unit of the shipment. |
List of routes on the selected lane, with details about each route.
Note
You can click items in the table to filter the contents on this page. To select multiple items, press CTRL and click more items.
Tip
You can click any column header to sort the contents of the table by the contents of that column. An arrow indicates the column the table is sorted by: An arrow pointing up indicates ascending order, and an arrow pointing down indicates descending order. Click the column header to toggle between the two.
Item | Description |
|---|---|
Route | Route on this lane - indicating each location along the way. |
Shipments w. excursions | Number of shipments with excursions on this route. |
Shipments | Number of shipments on this route. |
Excursion ratio | Ratio of shipments with excursions on this route. The background color indicates how high the ratio is - the higher the ratio of excursion, the redder the background. |
You can select another lane to view routes for on this page.
The lanes in the list are sorted by the number of shipments.
To select another lane, in the list, click the lane.
Tip
Start typing in the search box to filter the lanes in the list.
